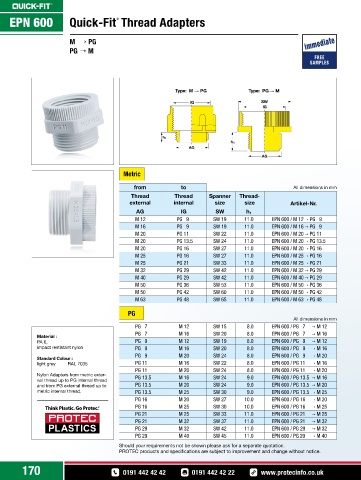

Page 170 - PROTEC PLASTICS UK 33

Quick-Fit Thread Adapters

M → PG
PG → M

Metric

from to All dimensions in mm
Thread Thread Spanner Thread-
external internal size size Artikel-Nr.
AG IG SW h ¹
M 12 PG 9 SW 19 11.0 EPN 600 / M 12 → PG 9
M 16 PG 9 SW 19 11.0 EPN 600 / M 16 → PG 9
M 20 PG 11 SW 22 11.0 EPN 600 / M 20 → PG 11
M 20 PG 13.5 SW 24 11.0 EPN 600 / M 20 → PG 13.5
M 20 PG 16 SW 27 11.0 EPN 600 / M 20 → PG 16
M 25 PG 16 SW 27 11.0 EPN 600 / M 25 → PG 16
M 25 PG 21 SW 33 11.0 EPN 600 / M 25 → PG 21
M 32 PG 29 SW 42 11.0 EPN 600 / M 32 → PG 29
M 40 PG 29 SW 42 11.0 EPN 600 / M 40 → PG 29
M 50 PG 36 SW 53 11.0 EPN 600 / M 50 → PG 36
M 50 PG 42 SW 60 11.0 EPN 600 / M 50 → PG 42
M 63 PG 48 SW 65 11.0 EPN 600 / M 63 → PG 48

PG
All dimensions in mm
PG 7 M 12 SW 15 8.0 EPN 600 / PG 7 → M 12
PG 7 M 16 SW 20 8.0 EPN 600 / PG 7 → M 16
Material :
PA 6, PG 9 M 12 SW 19 8.0 EPN 600 / PG 9 → M 12
impact restistant nylon PG 9 M 16 SW 20 8.0 EPN 600 / PG 9 → M 16
PG 9 M 20 SW 24 8.0 EPN 600 / PG 9 → M 20
Standard Colour :
light grey RAL 7035 PG 11 M 16 SW 22 8.0 EPN 600 / PG 11 → M 16
PG 11 M 20 SW 24 8.0 EPN 600 / PG 11 → M 20
Nylon Adapters from metric exter- PG 13.5 M 16 SW 24 9.0 EPN 600 / PG 13.5 → M 16
nal thread up to PG internal thread
and from PG external thread up to PG 13.5 M 20 SW 24 9.0 EPN 600 / PG 13.5 → M 20
metric internal thread. PG 13.5 M 25 SW 30 9.0 EPN 600 / PG 13.5 → M 25
PG 16 M 20 SW 27 10.0 EPN 600 / PG 16 → M 20
PG 16 M 25 SW 30 10.0 EPN 600 / PG 16 → M 25
PG 21 M 25 SW 33 11.0 EPN 600 / PG 21 → M 25
PG 21 M 32 SW 37 11.0 EPN 600 / PG 21 → M 32
PG 29 M 32 SW 42 11.0 EPN 600 / PG 29 → M 32
PG 29 M 40 SW 45 11.0 EPN 600 / PG 29 → M 40
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
