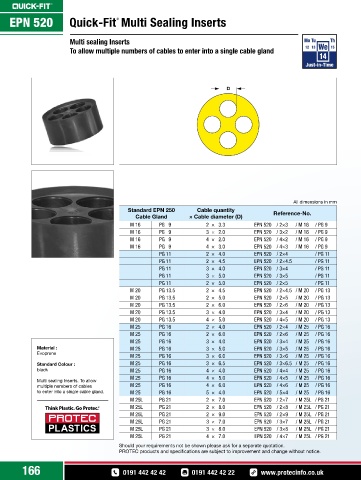

Page 166 - PROTEC PLASTICS UK 33

Quick-Fit Multi Sealing Inserts

Multi sealing Inserts
To allow multiple numbers of cables to enter into a single cable gland

All dimensions in mm
Standard EPN 250 Cable quantity Reference-No.
Cable Gland × Cable diameter (D)
M 16 PG 9 2 × 3.3 EPN 520 / 2×3 / M 16 / PG 9
M 16 PG 9 3 × 2.0 EPN 520 / 3×2 / M 16 / PG 9
M 16 PG 9 4 × 2.0 EPN 520 / 4×2 / M 16 / PG 9
M 16 PG 9 4 × 3.0 EPN 520 / 4×3 / M 16 / PG 9
PG 11 2 × 4.0 EPN 520 / 2×4 / PG 11
PG 11 2 × 4.5 EPN 520 / 2×4.5 / PG 11
PG 11 3 × 4.0 EPN 520 / 3×4 / PG 11
PG 11 3 × 5.0 EPN 520 / 3×5 / PG 11
PG 11 2 × 5.0 EPN 520 / 2×5 / PG 11
M 20 PG 13.5 2 × 4.5 EPN 520 / 2×4.5 / M 20 / PG 13
M 20 PG 13.5 2 × 5.0 EPN 520 / 2×5 / M 20 / PG 13
M 20 PG 13.5 2 × 6.0 EPN 520 / 2×6 / M 20 / PG 13
M 20 PG 13.5 3 × 4.0 EPN 520 / 3×4 / M 20 / PG 13
M 20 PG 13.5 4 × 5.0 EPN 520 / 4×5 / M 20 / PG 13
M 25 PG 16 2 × 4.0 EPN 520 / 2×4 / M 25 / PG 16
M 25 PG 16 2 × 6.0 EPN 520 / 2×6 / M 25 / PG 16
M 25 PG 16 3 × 4.0 EPN 520 / 3×4 / M 25 / PG 16
Material : M 25 PG 16 3 × 5.0 EPN 520 / 3×5 / M 25 / PG 16
Evoprene M 25 PG 16 3 × 6.0 EPN 520 / 3×6 / M 25 / PG 16
Standard Colour : M 25 PG 16 3 × 6.5 EPN 520 / 3×6.5 / M 25 / PG 16
black M 25 PG 16 4 × 4.0 EPN 520 / 4×4 / M 25 / PG 16
M 25 PG 16 4 × 5.0 EPN 520 / 4×5 / M 25 / PG 16
Multi sealing Inserts. To allow
multiple numbers of cables M 25 PG 16 4 × 6.0 EPN 520 / 4×6 / M 25 / PG 16
to enter into a single cable gland. M 25 PG 16 5 × 4.0 EPN 520 / 5×4 / M 25 / PG 16
M 25L PG 21 2 × 7.0 EPN 520 / 2×7 / M 25L / PG 21
M 25L PG 21 2 × 8.0 EPN 520 / 2×8 / M 25L / PG 21
M 25L PG 21 2 × 9.0 EPN 520 / 2×9 / M 25L / PG 21
M 25L PG 21 3 × 7.0 EPN 520 / 3×7 / M 25L / PG 21
M 25L PG 21 3 × 8.0 EPN 520 / 3×8 / M 25L / PG 21
M 25L PG 21 4 × 7.0 EPN 520 / 4×7 / M 25L / PG 21
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
