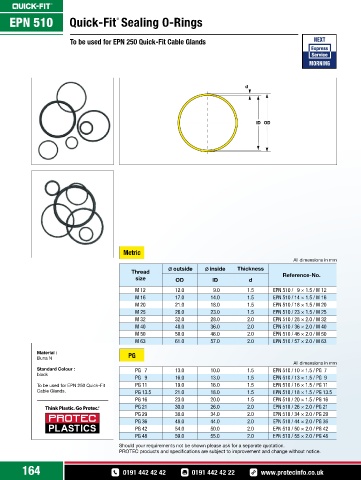

Quick-Fit Sealing O-Rings

To be used for EPN 250 Quick-Fit Cable Glands

Metric
All dimensions in mm
Thread outside inside Thickness
size OD ID d Reference-No.

M 12 12.0 9.0 1.5 EPN 510 / 9 × 1.5 / M 12
M 16 17.0 14.0 1.5 EPN 510 / 14 × 1.5 / M 16
M 20 21.0 18.0 1.5 EPN 510 / 18 × 1.5 / M 20
M 25 26.0 23.0 1.5 EPN 510 / 23 × 1.5 / M 25
M 32 32.0 28.0 2.0 EPN 510 / 28 × 2.0 / M 32
M 40 40.0 36.0 2.0 EPN 510 / 36 × 2.0 / M 40
M 50 50.0 46.0 2.0 EPN 510 / 46 × 2.0 / M 50
M 63 61.0 57.0 2.0 EPN 510 / 57 × 2.0 / M 63
Material :
Buna N PG
All dimensions in mm
Standard Colour : PG 7 13.0 10.0 1.5 EPN 510 / 10 × 1.5 / PG 7
black
PG 9 16.0 13.0 1.5 EPN 510 / 13 × 1.5 / PG 9
To be used for EPN 250 Quick-Fit PG 11 19.0 16.0 1.5 EPN 510 / 16 × 1.5 / PG 11
Cable Glands. PG 13.5 21.0 18.0 1.5 EPN 510 / 18 × 1.5 / PG 13.5
PG 16 23.0 20.0 1.5 EPN 510 / 20 × 1.5 / PG 16
PG 21 30.0 26.0 2.0 EPN 510 / 26 × 2.0 / PG 21
PG 29 38.0 34.0 2.0 EPN 510 / 34 × 2.0 / PG 29
PG 36 48.0 44.0 2.0 EPN 510 / 44 × 2.0 / PG 36
PG 42 54.0 50.0 2.0 EPN 510 / 50 × 2.0 / PG 42
PG 48 59.0 55.0 2.0 EPN 510 / 55 × 2.0 / PG 48
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
