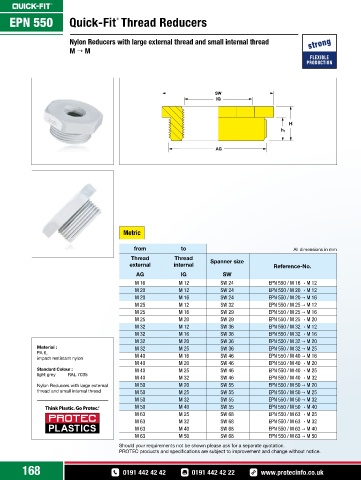

Quick-Fit Thread Reducers

Nylon Reducers with large external thread and small internal thread
M → M

Metric

from to All dimensions in mm
Thread Thread Spanner size
external internal Reference-No.
AG IG SW
M 16 M 12 SW 24 EPN 550 / M 16 → M 12
M 20 M 12 SW 24 EPN 550 / M 20 → M 12
M 20 M 16 SW 24 EPN 550 / M 20 → M 16
M 25 M 12 SW 32 EPN 550 / M 25 → M 12
M 25 M 16 SW 29 EPN 550 / M 25 → M 16
M 25 M 20 SW 29 EPN 550 / M 25 → M 20
M 32 M 12 SW 36 EPN 550 / M 32 → M 12
M 32 M 16 SW 36 EPN 550 / M 32 → M 16
M 32 M 20 SW 36 EPN 550 / M 32 → M 20
Material : M 32 M 25 SW 36 EPN 550 / M 32 → M 25
PA 6,
impact restistant nylon M 40 M 16 SW 46 EPN 550 / M 40 → M 16
M 40 M 20 SW 46 EPN 550 / M 40 → M 20
Standard Colour : M 40 M 25 SW 46 EPN 550 / M 40 → M 25
light grey RAL 7035
M 40 M 32 SW 46 EPN 550 / M 40 → M 32
Nylon Reducers with large external M 50 M 20 SW 55 EPN 550 / M 50 → M 20
thread and small internal thread M 50 M 25 SW 55 EPN 550 / M 50 → M 25
M 50 M 32 SW 55 EPN 550 / M 50 → M 32
M 50 M 40 SW 55 EPN 550 / M 50 → M 40
M 63 M 25 SW 68 EPN 550 / M 63 → M 25
M 63 M 32 SW 68 EPN 550 / M 63 → M 32
M 63 M 40 SW 68 EPN 550 / M 63 → M 40
M 63 M 50 SW 68 EPN 550 / M 63 → M 50
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
