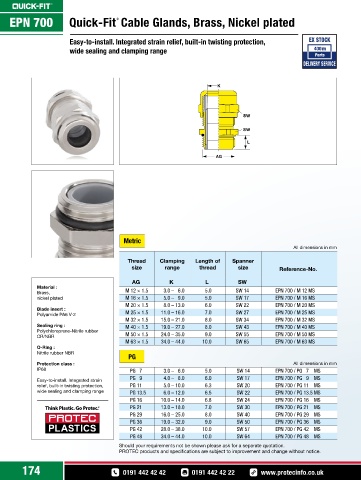

Quick-Fit Cable Glands, Brass, Nickel plated

Easy-to-install. Integrated strain relief, built-in twisting protection,
wide sealing and clamping range

Metric
All dimensions in mm

Thread Clamping Length of Spanner
size range thread size Reference-No.

AG K L SW
Material :
Brass, M 12 × 1.5 3.0 – 6.0 5.0 SW 14 EPN 700 / M 12 MS
nickel plated M 16 × 1.5 5.0 – 9.0 5.0 SW 17 EPN 700 / M 16 MS
M 20 × 1.5 8.0 – 13.0 6.0 SW 22 EPN 700 / M 20 MS
Blade insert : M 25 × 1.5 11.0 – 16.0 7.0 SW 27 EPN 700 / M 25 MS
Polyamide PA6 V-2
M 32 × 1.5 15.0 – 21.0 8.0 SW 34 EPN 700 / M 32 MS
Sealing ring : M 40 × 1.5 19.0 – 27.0 8.0 SW 43 EPN 700 / M 40 MS
Polychloroprene-Nitrile rubber M 50 × 1.5 24.0 – 35.0 9.0 SW 55 EPN 700 / M 50 MS
CR/NBR
M 63 × 1.5 34.0 – 44.0 10.0 SW 65 EPN 700 / M 63 MS
O-Ring :
Nitrile rubber NBR
PG
Protection class : All dimensions in mm
IP68 PG 7 3.0 – 6.0 5.0 SW 14 EPN 700 / PG 7 MS
PG 9 4.0 – 8.0 6.0 SW 17 EPN 700 / PG 9 MS
Easy-to-install. Integrated strain
relief, built-in twisting protection, PG 11 5.0 – 10.0 6.3 SW 20 EPN 700 / PG 11 MS
wide sealing and clamping range PG 13.5 6.0 – 12.0 6.5 SW 22 EPN 700 / PG 13.5 MS
PG 16 10.0 – 14.0 6.8 SW 24 EPN 700 / PG 16 MS
PG 21 13.0 – 18.0 7.0 SW 30 EPN 700 / PG 21 MS
PG 29 16.0 – 25.0 8.0 SW 40 EPN 700 / PG 29 MS
PG 36 19.0 – 32.0 9.0 SW 50 EPN 700 / PG 36 MS
PG 42 28.0 – 38.0 10.0 SW 57 EPN 700 / PG 42 MS
PG 48 34.0 – 44.0 10.0 SW 64 EPN 700 / PG 48 MS
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
