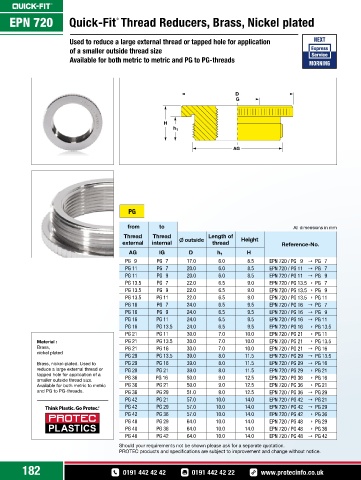

Page 182 - PROTEC PLASTICS UK 33

Quick-Fit Thread Reducers, Brass, Nickel plated

Used to reduce a large external thread or tapped hole for application
of a smaller outside thread size
Available for both metric to metric and PG to PG-threads

PG

from to All dimensions in mm
Thread Thread Length of Height
external internal outside thread Reference-No.
AG IG D h ¹ H
PG 9 PG 7 17.0 6.0 8.5 EPN 720 / PG 9 → PG 7
PG 11 PG 7 20.0 6.0 8.5 EPN 720 / PG 11 → PG 7
PG 11 PG 9 20.0 6.0 8.5 EPN 720 / PG 11 → PG 9
PG 13.5 PG 7 22.0 6.5 9.0 EPN 720 / PG 13.5 → PG 7
PG 13.5 PG 9 22.0 6.5 9.0 EPN 720 / PG 13.5 → PG 9
PG 13.5 PG 11 22.0 6.5 9.0 EPN 720 / PG 13.5 → PG 11
PG 16 PG 7 24.0 6.5 9.5 EPN 720 / PG 16 → PG 7
PG 16 PG 9 24.0 6.5 9.5 EPN 720 / PG 16 → PG 9
PG 16 PG 11 24.0 6.5 9.5 EPN 720 / PG 16 → PG 11
PG 16 PG 13.5 24.0 6.5 9.5 EPN 720 / PG 16 → PG 13.5
PG 21 PG 11 30.0 7.0 10.0 EPN 720 / PG 21 → PG 11
Material : PG 21 PG 13.5 30.0 7.0 10.0 EPN 720 / PG 21 → PG 13.5
Brass, PG 21 PG 16 30.0 7.0 10.0 EPN 720 / PG 21 → PG 16
nickel plated
PG 29 PG 13.5 39.0 8.0 11.5 EPN 720 / PG 29 → PG 13.5
Brass, nickel-plated. Used to PG 29 PG 16 39.0 8.0 11.5 EPN 720 / PG 29 → PG 16
reduce a large external thread or PG 29 PG 21 39.0 8.0 11.5 EPN 720 / PG 29 → PG 21
tapped hole for application of a
smaller outside thread size. PG 36 PG 16 50.0 9.0 12.5 EPN 720 / PG 36 → PG 16
Available for both metric to metric PG 36 PG 21 50.0 9.0 12.5 EPN 720 / PG 36 → PG 21
and PG to PG-threads. PG 36 PG 29 51.0 9.0 12.5 EPN 720 / PG 36 → PG 29
PG 42 PG 21 57.0 10.0 14.0 EPN 720 / PG 42 → PG 21
PG 42 PG 29 57.0 10.0 14.0 EPN 720 / PG 42 → PG 29
PG 42 PG 36 57.0 10.0 14.0 EPN 720 / PG 42 → PG 36
PG 48 PG 29 64.0 10.0 14.0 EPN 720 / PG 48 → PG 29
PG 48 PG 36 64.0 10.0 14.0 EPN 720 / PG 48 → PG 36
PG 48 PG 42 64.0 10.0 14.0 EPN 720 / PG 48 → PG 42
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
