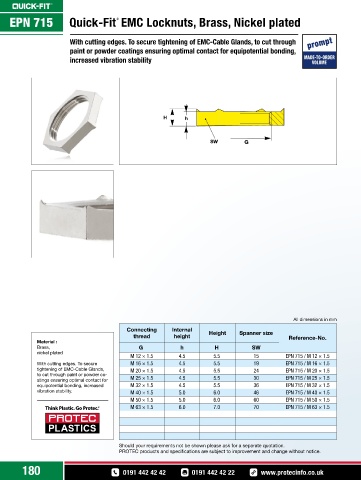

Page 180 - PROTEC PLASTICS UK 33

Quick-Fit EMC Locknuts, Brass, Nickel plated

With cutting edges. To secure tightening of EMC-Cable Glands, to cut through
paint or powder coatings ensuring optimal contact for equipotential bonding,
increased vibration stability

All dimensions in mm
Connecting Internal Height Spanner size
thread height Reference-No.
Material :
Brass, G h H SW
nickel plated
M 12 × 1.5 4.5 5.5 15 EPN 715 / M 12 × 1.5
With cutting edges. To secure M 16 × 1.5 4.5 5.5 19 EPN 715 / M 16 × 1.5
tightening of EMC-Cable Glands, M 20 × 1.5 4.5 5.5 24 EPN 715 / M 20 × 1.5
to cut through paint or powder co-
atings ensuring optimal contact for M 25 × 1.5 4.5 5.5 30 EPN 715 / M 25 × 1.5
equipotential bonding, increased M 32 × 1.5 4.5 5.5 36 EPN 715 / M 32 × 1.5
vibration stability. M 40 × 1.5 5.0 6.0 46 EPN 715 / M 40 × 1.5
M 50 × 1.5 5.0 6.0 60 EPN 715 / M 50 × 1.5
M 63 × 1.5 6.0 7.0 70 EPN 715 / M 63 × 1.5

Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
