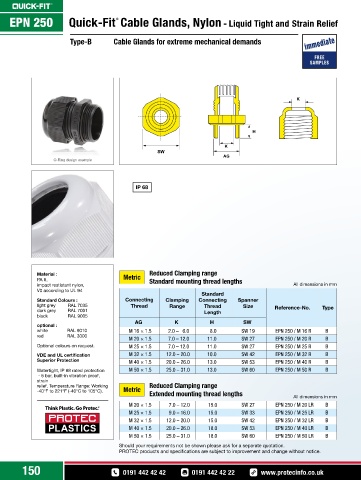

Page 150 - PROTEC PLASTICS UK 33

Quick-Fit Cable Glands, Nylon - Liquid Tight and Strain Relief

Type-B Cable Glands for extreme mechanical demands

O-Ring design example

Material : Reduced Clamping range
PA 6, Metric Standard mounting thread lengths
impact restistant nylon, All dimensions in mm
V0 according to UL 94
Standard
Standard Colours : Connecting Clamping Connecting Spanner
light grey RAL 7035 Thread Range Thread Size Reference-No. Type
dark grey RAL 7001 Length
black RAL 9005
AG K H SW
optional :
white RAL 9010 M 16 × 1.5 2.0 – 6.0 8.0 SW 19 EPN 250 / M 16 R B
red RAL 3000
M 20 × 1.5 7.0 – 12.0 11.0 SW 27 EPN 250 / M 20 R B
Optional colours on request. M 25 × 1.5 7.0 – 12.0 11.0 SW 27 EPN 250 / M 25 R B
VDE and UL certification M 32 × 1.5 12.0 – 20.0 10.0 SW 42 EPN 250 / M 32 R B
Superior Protection M 40 × 1.5 20.0 – 26.0 13.0 SW 53 EPN 250 / M 40 R B
Watertight, IP 68 rated protection M 50 × 1.5 25.0 – 31.0 13.0 SW 60 EPN 250 / M 50 R B
- 5 bar, built-in vibration proof,
strain
relief. Temperature Range: Working Reduced Clamping range
-40°F to 221°F (-40°C to 105°C). Metric Extended mounting thread lengths
All dimensions in mm
M 20 × 1.5 7.0 – 12.0 15.0 SW 27 EPN 250 / M 20 LR B
M 25 × 1.5 9.0 – 16.0 15.0 SW 33 EPN 250 / M 25 LR B
M 32 × 1.5 12.0 – 20.0 15.0 SW 42 EPN 250 / M 32 LR B
M 40 × 1.5 20.0 – 26.0 18.0 SW 53 EPN 250 / M 40 LR B
M 50 × 1.5 25.0 – 31.0 18.0 SW 60 EPN 250 / M 50 LR B
Should your requirements not be shown please ask for a separate quotation.
PROTEC products and specifications are subject to improvement and change without notice.
